Ball float – type 1
Product information

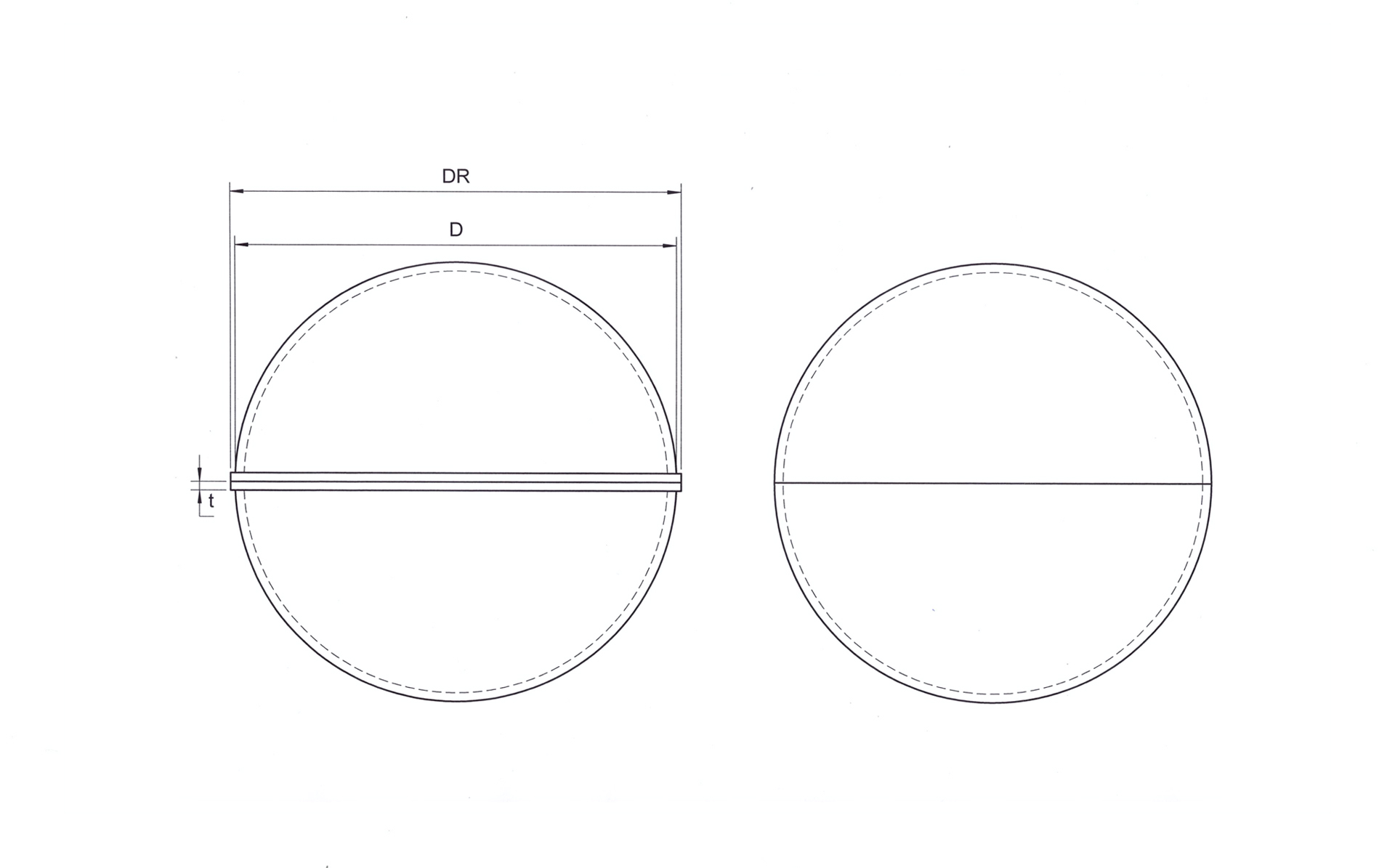

Diameter | D: from 9 mm to 1200 mm
Diameter edge | DR: depending on D and t
Material thickness | t: from 0,2 mm to 4,0 mm
Material: any metal
Suspension: any suspension (examples see appendix)

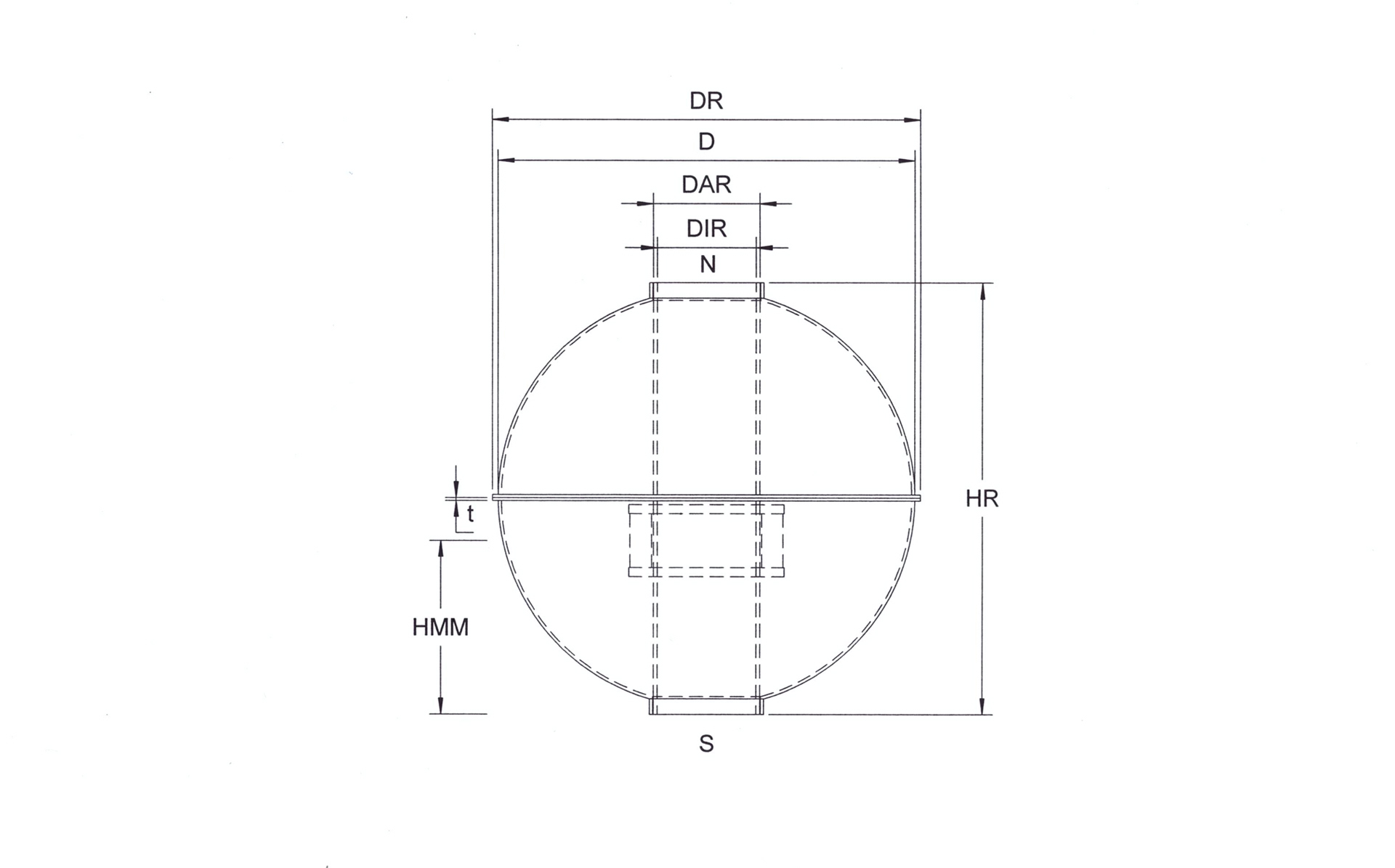

Internal diameter pipe | DIR: please specify
Outer diameter pipe | DAR: please specify
Length of pipe | HR: please specify
Height of magnet center | HMM: please specify
North pole | N: please specify polarization
South pole | S: please specify polarization
Diameter edge | DR: depending on D and t
Material thickness | t: from 0,2 mm to 4,0 mm
Material: any metal
Suspension: any suspension (examples see appendix)
Internal diameter pipe | DIR: please specify
Outer diameter pipe | DAR: please specify
Length of pipe | HR: please specify
Height of magnet center | HMM: please specify
North pole | N: please specify polarization
South pole | S: please specify polarization
Production:
We already produce from one piece to mass production.
We only process metals like:
Aluminium
Chrome-nickel steel (1.4016, 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4435, 1.4439, 1.4462, 1.4539, 1.4541, 1.4571, 1.4828 etc.)
Copper
Brass
Nickel-based material (Alloy 625, Alloy 825, B2, B3, C2, C4, C22, C276, Monel 400 etc.)
Tantalum
Titanium (Gr.1, Gr.2, Gr.4)
We already produce from one piece to mass production.
We only process metals like:
Aluminium
Chrome-nickel steel (1.4016, 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4435, 1.4439, 1.4462, 1.4539, 1.4541, 1.4571, 1.4828 etc.)
Copper
Brass
Nickel-based material (Alloy 625, Alloy 825, B2, B3, C2, C4, C22, C276, Monel 400 etc.)
Tantalum
Titanium (Gr.1, Gr.2, Gr.4)
Material thickness:
Deep-drawn parts and floats from 0,2 mm to 4,0 mm
Laser cutting parts from 0,2 mm to 25 mm
Attachment parts:
Each float can be produced with each attachment part (suspension, fill screw, guide pipe, magnet system etc.)
Test:
Pressure test possible to 400 bar if required.
X-ray inspection if required.
All floats are tested for 100 % tightness.
Deep-drawn parts and floats from 0,2 mm to 4,0 mm
Laser cutting parts from 0,2 mm to 25 mm
Attachment parts:
Each float can be produced with each attachment part (suspension, fill screw, guide pipe, magnet system etc.)
Test:
Pressure test possible to 400 bar if required.
X-ray inspection if required.
All floats are tested for 100 % tightness.
